Commercial Self-Ordering Kiosk with HD Touch Screen
Professional restaurant menu kiosk solution designed for modern food service operations.
Product Overview
This commercial self-ordering kiosk is engineered specifically for restaurant environments, featuring HD touch screen interaction and professional menu display capabilities. With IP65 waterproof and dustproof certification, the kiosk is equipped with 75-inch 4K HD displays (single or double side optional) delivering 2500 nits high brightness, ensuring clear and vivid menu presentations even in bright restaurant environments or semi-outdoor dining areas.
The floor-standing design provides exceptional stability and durability for long-term high-frequency commercial use. The high-sensitivity touchscreen enables convenient customer self-service interaction, allowing customers to browse menu details, select dishes, customize orders, and complete payment independently, effectively reducing restaurant labor costs and improving ordering efficiency.
Ideal for restaurants, cafes, fast food shops, diners, food courts, and various food service venues.
Key Features
- Premium HD Touch Display: Features BOE, LG, or Samsung original LCD 24:9 high-end panel with 3840×1440 pixels resolution (4K HD). Customized stretched vertical shape provides elegant appearance, perfect for vertical menu presentations, dish introductions, and promotion displays. High-sensitivity touchscreen supports multi-touch operation with smooth response and accurate positioning.
- Powerful Performance: Equipped with RK3288 CPU mainboard with Android 7.1 system (optional Android 11.0 or Windows system), supporting 4K video playback with quad-core 1.7GHz processing. Built-in high-sensitivity touchscreen capability is matched with 2GB RAM and 8GB ROM (upgradable to 4GB RAM and 16GB/32GB ROM), ensuring smooth operation of the self-ordering system.
- Easy Menu & Order Management: Includes free professional menu and order management software allowing restaurants to quickly update menu content, adjust prices, add new dishes, set promotions, and view order records via USB drive or WiFi network. Optional 4G connectivity enables remote menu updates and order management anytime, anywhere.
- Durable Commercial Design: Specifically engineered for busy restaurant environments with floor-standing structure ensuring strong stability. IP65 waterproof and dustproof certification effectively prevents water splashes, oil stains, and dust from damaging the equipment. Industrial-grade shell is scratch-resistant and impact-resistant for high-frequency use in public catering scenarios.
Technical Specifications
| Specification Item |
Details |
| Processor |
RK3288 (standard), Intel I5 (recommended) |
| Memory & Storage |
2GB RAM + 8GB ROM (standard); upgradable to 4GB RAM and 16GB/32GB ROM; 8GB RAM + 128GB SSD (optional) |
| Operating System |

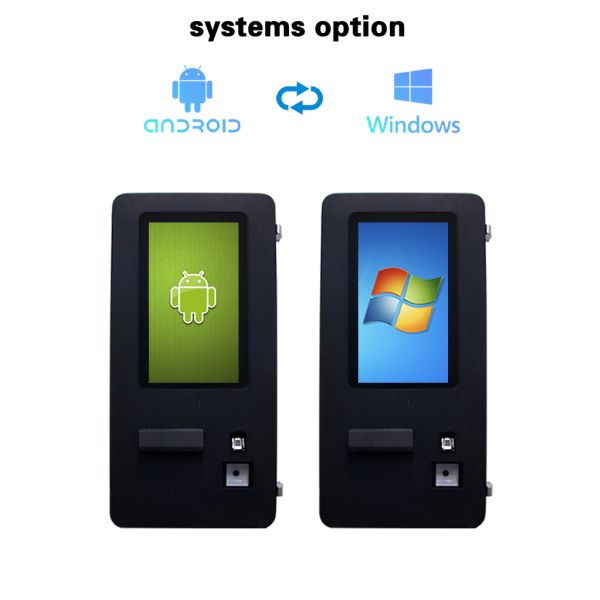

Android 7.1 (standard), Android 11.0 (optional), Windows (optional) |
| Display & Touch |
75-inch, BOE/LG/Samsung original LCD panel, 3840×1440 pixels resolution, 2500 nits high brightness, 24:9 stretched vertical shape, high-sensitivity multi-touch screen |
| Connectivity |
Built-in WiFi, Ethernet, optional 4G/5G |
| Software |
Free menu & order publishing software (supports multi-kiosk unified update and order management) |
| Protection Level |
IP65 waterproof and dustproof |
| Installation |
Floor Stand (stable design for restaurant indoor/outdoor patio use) |
Applications
- Fast Food Shops: High-sensitivity touchscreen and fast response system enable customers to complete ordering and payment quickly, reducing waiting time and improving turnover efficiency.
- Cafes & Bakeries: Elegant vertical display design perfectly showcases coffee, pastry images, detailed introductions, and limited-time promotions, enhancing customer experience and brand image.
- Restaurants & Diners: Supports customized ordering (adjusting taste, portion size), displays dish ingredients and nutritional information, meeting diverse customer needs and reducing order errors.
- Food Courts: Unified menu and order management system suitable for multi-store operation, enabling synchronous menu updates and centralized order management.
Product Images
