32-inch High-Brightness Self-Service Ordering Terminal with Braille-Embedded Tactile Keypad and ADA-Compliant Barrier-Free Design

Resolution : 1920*1080

CPU : RK3568/RK3576/RK3588/I3-4th/i5-10th

Operating System : Android 11OS/PC

Temperature detecting software : Multi language

Screen size : 24/32 inch

built-in memory : 8GB

Brand Name : GENEVISION / OEM

Model Number : MG-320

Certification : CE/CCC/FCC/ISO9001

Place of Origin : shenzhen, CHINA

MOQ : 1

Price : USD410-USD650/pc

Payment Terms : T/T,Western Union

Supply Ability : 6000 pcs per month

Delivery Time : 3 or 5 working days

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Network connection : LAN cable, wifi

Application : Indoor use

Contact Now

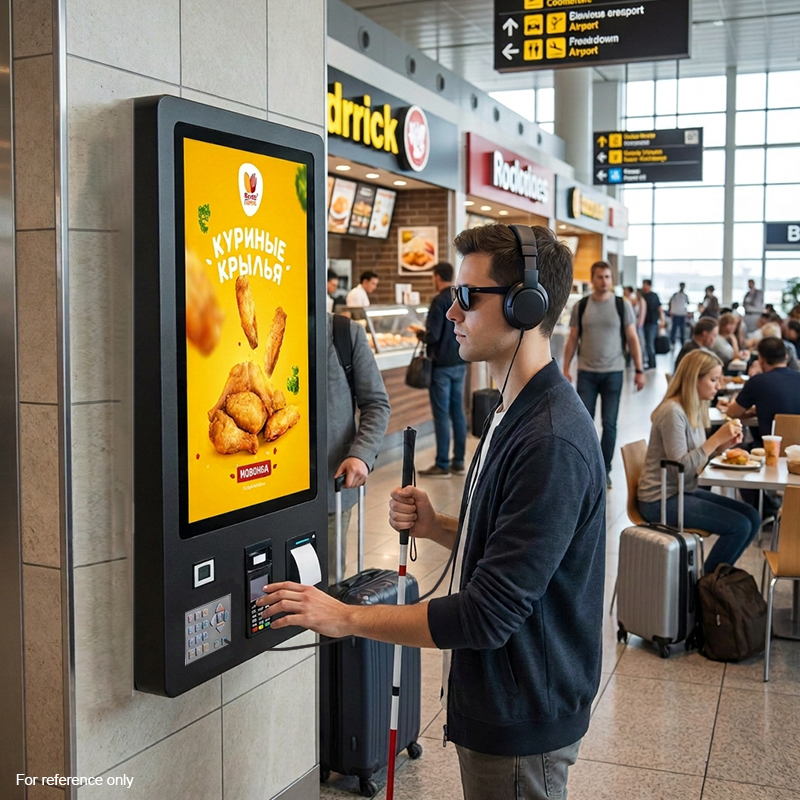

32" Accessible Self-Service Ordering Terminal – Braille Buttons & Tactile Keypad for Visually Impaired Users
Product Overview

This 32" accessible self-service ordering terminal features Braille-embedded tactile keypads and ADA-compliant design, specifically engineered for visually impaired users in retail and service environments.

  • 32" High-Brightness Display - 700 nits, anti-glare, clear visibility in bright retail environments
  • Braille-Embedded Tactile Keypad - Independent operation for visually impaired users
  • ADA-Compliant Barrier-Free Design - Accessible height, contrast, and intuitive navigation
  • 10-Point PCAP Touchscreen - Responsive, glove-friendly, and frustration-free operation
  • Fast Self-Service Checkout - Reduces queue times, increases customer throughput
Technical Specifications
Display Specifications
Model No. Panel Size Display Area/Mode Max Resolution
MG-240 24" TFT-LCD panel with LED backlight 523.3mm(H)*295.2mm(V) 16:9 1920*1080 Full HD
MG-320 32" TFT-LCD panel with LED backlight 698.7mm(H)*393.3mm(V) 16:9 1920*1080 Full HD
Display Color Pixel Pitch Brightness Contrast
16.7M 0.51mm(H) x 0.51mm(W) 350cd/m² 1200:1
Visual Angle Response Time Life
178°/178° 5ms >60,000 hours
Media & Format Support
Video Formats MP4(AVI:DIVX/XVID), MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
Audio Formats Wave/MP3/WMA/AAC
Image Formats JPEG/BMP/TIFF/PNG/GIF
Image Resolution 480P/720P/1080P
OSD Language Chinese/English (Multiple Language Supported)
Power & Environmental
Power Supply AC100~240V 50/60 HZ
Max Power Consumption ≤108W
Standby Power <5W
Working Temperature 0℃～50℃
Storage Temperature -25℃～60℃
Working Humidity 20%~85%
Storage Humidity 10%~90%
Physical Specifications
Color/Appearance White or black color
Body Dimensions 24": 900mm(height) * 425mm(width) * 116mm(thickness)
32": 1070mm(height) * 512mm(width) * 116mm(thickness)
Main Material Metal shell and 3mm thickness tempered glass
Installation Wall mounted or floor standing (extra cost 62 US Dollars)
PC Mainboard & Features
CPU 5th Intel I3 (4GB RAM, 128GB SSD)
Internet Connection WiFi & LAN cable
Touch Screen 10-point capacitive touch screen
Thermal Printer 80mm inbuilt, supports automatic paper cutting with cutter, quiet operation and high-speed printing
QR Code Scanner Inbuilt 2D/1D QR code scanner
POS Bracket Space 90*175.2mm for POS terminal
Accessories Power cables, English manual
Warranty One year
Product Images
32-inch High-Brightness Self-Service Ordering Terminal with Braille-Embedded Tactile Keypad and ADA-Compliant Barrier-Free Design 32-inch High-Brightness Self-Service Ordering Terminal with Braille-Embedded Tactile Keypad and ADA-Compliant Barrier-Free Design 32-inch High-Brightness Self-Service Ordering Terminal with Braille-Embedded Tactile Keypad and ADA-Compliant Barrier-Free Design 32-inch High-Brightness Self-Service Ordering Terminal with Braille-Embedded Tactile Keypad and ADA-Compliant Barrier-Free Design
Frequently Asked Questions
What is the minimum order?
Mercedes is a professional manufacturer with CBU assembly production lines. Both OEM/ODM and sample testing orders are highly appreciated.
Do you provide software?
Our software is based on Windows system, but some countries may not support it.
How long is the warranty time for your products?
Our officially promised warranty time is 1 whole year after delivery at best.
Is it waterproof?
Yes, IP55 waterproof rating with air cooling fans inbuilt.
Do you provide DDP shipping solution?
Yes, we can send them to you by air or sea door to door. For EU countries, we can do truck door to door which only needs 30 days.
What's your price?
Price depends on screen size, order quantity, system and hardware spare parts you want us to inbuilt into the metal case. Please provide detailed requirements for an accurate quote.
What's the production time?
If no stock, production time is 3-4 working weeks after size drawing confirmation.
